Running RED and FIFO experiments.

This page gives a brief introduction on how to run experiments with the kernels, queue managers, and scripts that I've used for studying RED and FIFO queue management algorithms.

To do any of the stuff explained on this page you will need a copy of the scripts for running experiments. I've made a wraped package which you can download from here: redexpdist.tgz

Network setup.

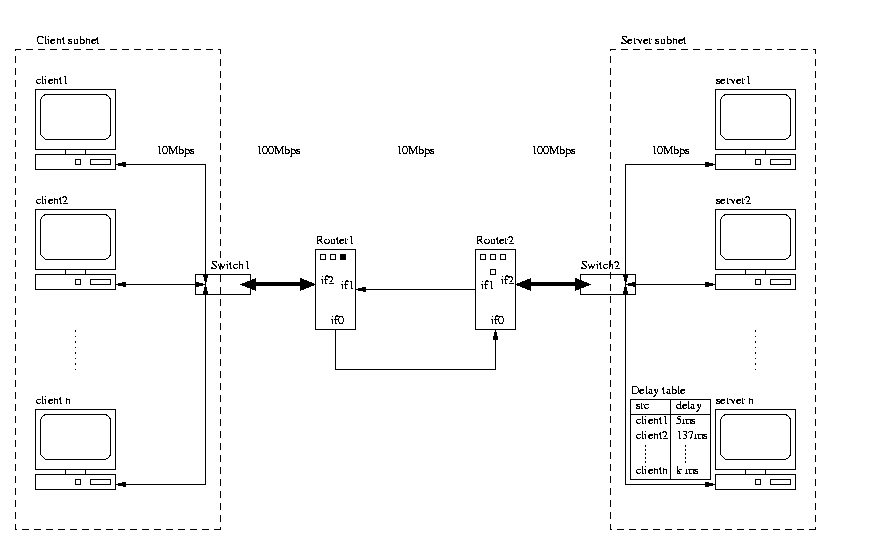

Figure 1. shows an overview of the network setup. On one side of the routers the clients run and on the other side the servers run.


For making the simulation as close a possible to a real world network we have introduced a delay on packets as they travel between client and server hosts. In the figure this is illustrated by the "delay table" on server n. The delaying of a packet is done when a packet arrives at the ip layer of server from a client. The server finds delay time for the specific client from which the packet originated, and delays the packet that amount of time before it is propagated further up the protocol stack.

The interesting thing is that the delay is introduced only in one direction, and that it in principle could be done anywhere in the network.

We should also mention that the delays are handled my the firewall in freebsd called ipfw.

queue management

During a simulation only one interface in the network should experienced congestion, and this is the interface on which we want to apply the queue management algorithm. In figure it is the outbound interface on router2, labeled if1.

To run a specific queue management algorithm we need to run a daemon that attaches the the kernel on the router. There is a separate daemon for each of the queuing mechanisms: fifoqd  and  redd.


While running a simulation we monitor the traffic in the network so that we have data that can show the behavior of the traffic and queue management algorithm. This is useful both for gaining insight to the traffic behavior, but also for ensuring that the experiment runs as expected.

On the queue management algorithm we have some specialized tools for monitoring the queuing mechanism and the general throughput of the router. These are called: fifoqstat and redstat, just as in the altq distribution, except these are modified from the original versions from altq-1.2. Notice that these tools will build up a log in memory and flush this to disk when the timeout occurs, meaning that if you kill these tools then you won't get any data in the logfile.

On the congested link carrying traffic from router 2 to router 1 we have a monitor which measures the number of bytes passing through the link pr second. This tool is called ifmon.

The remaining data is collected by the simulators, and mainly by the client simulator.

general stuff about running the traffic simulations

When running experiments we use 7 clients and 7 servers.  The number of browsers range from 1714 for 50% link utilization and 3740 for 110% link utilization. The total number of browsers is distributed evenly among the clients, so that no client runs more then 1500 browsers.

The organization of experiments is done by having a separate directory for each experiment. Avoid changing any of the original log or configuration files. Plots from post processing are placed in  a sub directory called plots.

Log files are Always written to local disk, and copied to a central disk when the experiment is completed. During an experiment the must be NO extra traffic, since this may have a significant impact on the performance of the experiments.

During the past two years we've built up a collection of scripts that supports running and analyzing
the experiments, in general there are three categories of scripts: setting up the network, running the experiments, and post prossing the log files. Especially the post prossing scripts expect certain log and configuration files to be present in the experiment directory. The reason for this high dependence on certain files is that this makes it possible to automate things like setting of titles on the generated plots.

It should be mentioned that these scripts are not industrial strength scripts, which basically means that
there may be unknown bugs and they do write debugging output when being executed.

Feel free to fix/modify or extend your personal copy of the scripts in anyway you want.

Setting up the network

Setting up the network is done with the script "bin/setupnet". This script runs through a config file that gives a precise description of the network setup. Furthermore the script runs a number of tests that helps ensure that the network and the hosts are properly configured. An example config file is found in: "setup/netconfig.ave".

Note that this script runs as root.

bin/setupnet -f setup/netconfig.ave

Before you can start running anything you will need a netconfig.ave dedicated to the network you will be using.

We usually only run this script once for each set of experiments. That is once every time someone else has used the network.

If you are sure that the kernels weren't changed and that there are no hanging processes, you can comment out the section telling setupnet to reboot the hosts.

Be sure to take a close look at the output before starting an experiment. And be sure to save the output for future reference.

Configuring Experiments

Each experiment has a configuration file which tells it exactly which monitors to run, and which parameters to use on the queue management system. The following is an example of such a file for an fifoq experiment

# where to put all the logfiles (local disk space)
logdir: /usr/home2/mixxel

# the network configuration file. (will be copied to $logdir/net.config)
netconfig: /home/mixxel/red/setup/netconfig.ave

# rrdata: central, remotes

# hosts on which all nfs mounts are umounted during the experient

# sysctl:hostlist:pattern
# hostlist is a comma seperated list
# pattern is the grep "pattern" in the sysctl lines
# results will go into sysctl.log
sysctl: daffy139, bollella139:intr

# netstat: hostlist:netstat options
# hostlist is a comma seperated list
# netstat is syntactical sugar and will be replaced with netstatbin
# options is the options that you wan't to pass to netstat
# results will go into netstat.log
netstat: daffy139,bollella139 : netstat -d -I fxp0
netstat: daffy139,bollella139 : netstat -d -I fxp1
netstat: daffy139,bollella139 : netstat -d -I fxp2
netstat: goddard134,floyd134,goober134,thelmalou134:netstat -p tcp
netstat: roadrunner134,yako134,wako134:netstat -p tcp
netstat: brain138,taz138,lovey138,speedy138:netstat -p tcp
netstat: petunia138,tweetie138,howard138: netstat -p tcp

# router: host, command
# (remember not to use -d - that will cause to runtest to hang)
router: daffy139,fifoqd -l 190  xl0

#routermon: host, command,timeout;
#sample at a rate of 2ms (-i option) and make a log entry for every 100ms
routermon: daffy139,fifoqstat -i 2000 -l 100 -s 5460 xl0

#ifmon: host,interface,interval (ms)
ifmon: yosemite139,fxp2,1000

# tcpdump: host, cmd
# note: tcpdump will be substituted with tcpdumpbin
# note: do not use full path in -w option (It will be put in logdir)
#tcpdump: yosemite139,tcpdump -i fxp2 -w tcpdump139.log
#tcpdump: yosemite139,tcpdump -i fxp1 -w tcpdump138.log

# server: name,timeout (secs)
server: floyd134,5460
server: goober134,5460
server: thelmalou134,5460
server: roadrunner134,5460
server: goddard134,5460
server: yako134,5460
server: wako134,5460

# client: name,browsers,timeout (secs)
client: howard138,438,5400
client: lovey138,438,5400
client: speedy138,438,5400
client: brain138,438,5400
client: petunia138,438,5400
client: taz138,438,5400
client: tweetie138,437,5400

description: fifo61.190.3065 runs for 5400 secs with 3065 browsers

The script that uses a configuration file like this one is called "bin/runtest". Before you can run any experimetns with runtest you first need to make you own version of the config file, where you modify the
hostnames and the interfaces used for the router and monitors.

Also you will need to check though the beginning of runtest, making sure that all the paths points to binaries that are present.

runtest also runs as root because runtest includes code for unmounting nfs mounted the file systems on the routers - you may choose not to use this feature by commenting out the umount section.

rdate is a small program that synchronizes the clock on all the machines in the setup.

The directory called LOGDIR should exists on all the hosts in the experimental network before starting and experiment. This is always the same directory and old log files will be overwritten when a new experiment is started. Sometimes runtest expects local versions of the binaries such as fifoqd and redd and their stats tools.

Be sure the root has write access to resultdir and that this directory exists before runtest is executed, this is needed because runtest collects all the log files in the resultdir when the experiment completes.

While debugging your config files it can be useful to reduce the length of the experiment to 5minutes....just
be sure to make the change in all the lines that requires a time-out period.

Running experiments

There are two ways for running experiments, on is to simply do a setupnet and the run runtest for each of the experiments. This will require your precise every time an experiment is started.

We use a script called runrunrun which does the above mentioned for each file in a directory. This allows one to add extra experiments while an experiment is running. You can also control the job execution by touching a file called "stop" or "wait" in the directory with the experiment configurations. To continue simply remove the "stop" or "wait" file.

see: bin/runrunrun -?

Post processing

The post processing is done by a collection of perl scripts in the plot catalog. These perl scripts have a number of hard linked paths which you will need to change to get them working.  For instance if you do a grep mixxel * in the plot catalog then you will see many of this paths that need fixing. Use etags and emacs, then you should be able to fix this pretty fast.

When an experiment has completed you should have the following files in the resultdir:

catalyst.log                                  # output from the catalyst scripts
client_<client host>.log           # primary client log file
clients.log.gz                               # standard error from all the clients
dl_<client host>.log                  # secondary client log file (binary format - read by calling thttp -rf <logfile>)
fifo20.15.3353                            #  experiment configuration file
ifmon.log.gz                                 # log from the bandwidth utilization tool called ifmon
 ifmonerr.log.gz                          # std err from the ifmon tool
net.config                                    # your network configuration which is used by setupnet
netstat.log.gz                             #  output from netstat
<server host>.log                    # logfiles from servers
router.log.gz                              # std err from the routermonitor
routermon.log.gz                     # the router monitor logfile
servers.log.gz                           # stderr from the servers
sysctl.log.gz                              # output from the sysctl command

If any of these logfiles are missing, especially net.config or fifo20.15.3353 is missing, then the post processing scripts will fail.


To generate plots from an experiment use the script "plot/doall" which applies each of the plotting scripts to the experiments with the parameters to cut away the first 20 minutes of the experiments. Running the command "doall ~mixxel/red.1set" will cause doall to process all the experiments in red.1set. If the plotfiles allready exist then doall moves on the the next expdir. One can also choose just to give an expdir as argument, then only that experiment will be processed.

Do all will produce the following xplots in resultdir/plots (the ones in bold is the most frequently used plots):

dl_cdf.xpl.gz               # the response time CDF
cdf_interval.xpl.gz    # the response time CDF where requests are catagorized by reply size 0b-2880b,2880b-27514b,27514b-2Mb
dl_rsp.xpl.gz               # response times over time averages in 1 second intervals
ifmon.xpl.gz                # linkutilization plot over time
packets.xpl.gz            # packets per 1/10 of a second plots
qlen.xpl.gz                   # queue length plots
qlen_cdf.xpl.gz           # queue length CDF plots
rsp.xpl.gz                      # response time over time avereraged pr second
thruput_cdf.xpl.gz      # cdf of the throughput

Scripts in "plot" that may come in handy:

plot/combine_cdfs            # a script that can combine several cdfs into a single xpl file, do a -? option to get the options
plot/rmon2R                       # converts the routermon.log into a table which can be read by the tool R (a free s+ clone)
plot/xpl2gnuplot                # a tool that can convert xpl files into gnuplot files. (experimental)
plot/xpl2ss                          # a tool that can convert an cdf xpl file to a spread sheet format - almost equal to rmon2R
plot/*.pm                             # various perl modules used by the scripts...


We also calculate statistics from the logged data - the result of a stats calculation on an experiment is a single line which contains a summary of the experiment. This line is places in the file: <expdir>/plots/stats.

The scripts for calculating the statistics  are in the "stats" directory. The main script is the one called
"calcstats". There are some files with extension .Rcode, these are simple scripts for R, used by calcstats.

NOTE: when calcstats uses R it will consume more than 300MB memory!

To calculate the stats we use the tool called R. R works on tables with data. So to load the data we convert all the response time measurements and routermon measurements into two files rsptimes.Rdata (using plot/dl_cdf with the -t option) and routermon.Rdata. These files are quite large so you may not want to save them once the stats has been calculated, since you can always regenerate them from the raw data.

Calcstats allows one to pass arguments regarding the configuration of the router, so that these are included
in the stats file for the experiment. There is also an ID field which allows you to give the line a unique identifier.

do a: calcstats -? to see the options.

The stats file has the following statistics for an experiment:
type  type e.g. fifo or red
id  the unique id of this exp
qlen  queue length (packets)
wq  1/wq
maxp  1/maxp
minth  minimum threshold (packets)
maxth  maximum threshold (packets)
median_rsptime  median response time for all requests (ms)
mean_rsptime  mean response time for all requests (ms)
mean_rsptime1  mean response time for all requests that complete within 1s and has a reply size that is smaller then 2.88kb
num_reqs1  number of requests that complete within 1s and has a response size less then 2.88k
avg_qlen  the average queue length
max_qlen  the maximum queue length seen!
xmit_packs_pr_sec  average number of packets xmitted per s
xmit_kbps  average number of kbytes xmitted per s
drop_packs_pr_sec  average number of packets dropped per s
drop_packs  % of packets drop of total number of packets arriving at the router
unforced_drops  % of drop_packs that were unforced drops (e.g. early drops)
force_drops  % of drop_packs that were force drops (e.g. queue overflow)
num_reqs_0-1000ms  % of requests that complete within 1s
num_reqs_1000-2000ms  % of requests that complete within the 1-2s interval
num_reqs_2000-3000ms  % of requests that complete within the 2-3s interval
num_reqs_3000-ms  % of requests that takes more the 3s to complete
num_reqs  total number of requests made


Two experiments have been wrapped up to you to see exactly what the result is of running an experiment. One FIFO queueing experiment and one RED:




primarily use the TA for the course, if that doesn't work you can email me:
