Kecheng Yang (yangk@cs.unc.edu)

Assignment 2 Part I

2(I).Image compositing

---

2(I).1 Description

This assignment explores image compositing and in-painting using gradient domain processing.

---

2(I).2 Mask

Find two images, make a binary mask using any tool you like, and write matlab code to copy the pixels where the mask is 1 from one image into the other.

Here is two images:

We use imshow(source) and imfreehand() to make the binary mask.

The resulting mask is:

The code that inputs the data and allows user to select mask is data_input.m.

---

2(I).3 Simple Clone

This part is simply to copy the pixels where the mask is 1 from one image into the other.

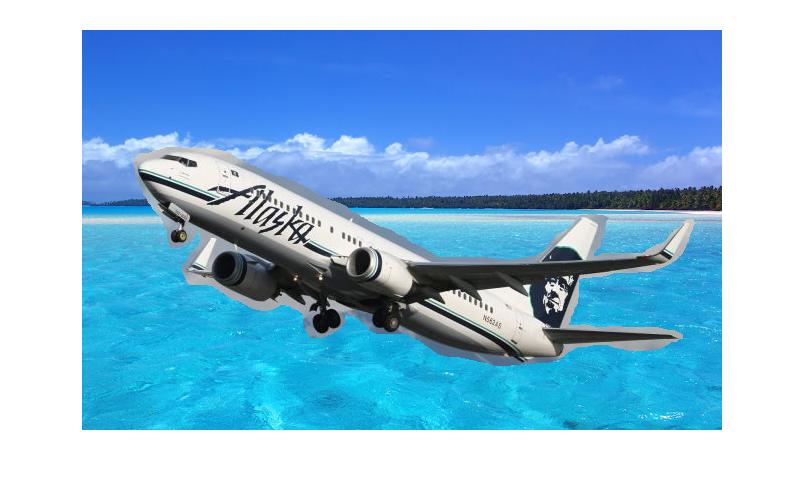

The result is:

The code for cloning is easy_clone.m.

---

2(I).4 Alpha Blending

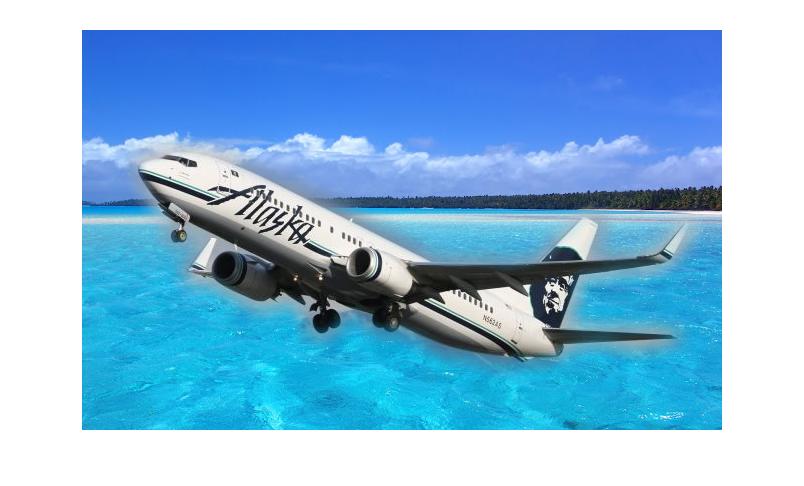

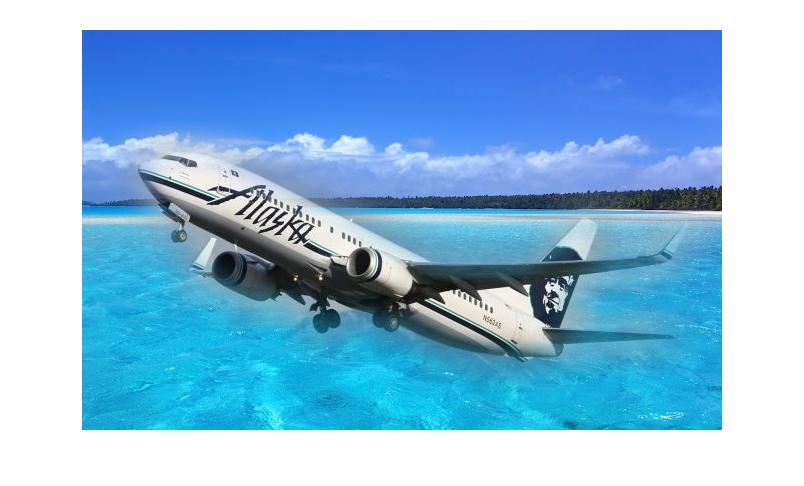

In this part, we use alpha blending to integrate the two images. Various window sizes are considered.

The result is:

The code for alpha blending is alpha.m.

---

2(I).5 Toy Problem

This toy problem is an implementation for gradient domain processing. We use the graients and the value of one point in the original image to recover the image.

The core part of the code is:

for color=1:nb
    s = im(:,:,color);
    e = 0;
    for y=1:imh
        for x=1:imw-1
            e = e+1;
            A(e, im2var(y,x+1))=1;
            A(e, im2var(y,x))=-1;
            b(e) = s(y,x+1)-s(y,x);
        end
    end

    for y=1:imh-1
        for x=1:imw
            e = e+1;
            A(e, im2var(y+1,x))=1;
            A(e, im2var(y,x))=-1;
            b(e) = s(y+1,x)-s(y,x);
        end
    end

    e=e+1;
    A(e, im2var(1,1))=1;
    b(e)=s(1,1);
    b = double(b(:));

    v = A\b;

    for y=1:imh
        for x=1:imw
            output(y,x,color) = v(im2var(y,x));
        end
    end
end

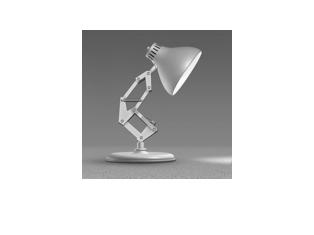

The result is:

The code for the toy problem is toy.m.

---

2(I).6 Gradient Domain Blending

Finally, we use the gradient domain blending to insert a part of an image to the other one.

According to James Hays's slides, we use the the Laplacian to do this.

The core part of the code is:

for y=1:imh
	for x=1:imw
		if(bMask(y,x))
			e = e+1;
			sparse_count = sparse_count+1;
			i(sparse_count) = e;
			j(sparse_count) = im2var(y,x);
			va(sparse_count) = 4;
			sparse_count = sparse_count+1;
			i(sparse_count) = e;
			j(sparse_count) = im2var(y-1,x);
			va(sparse_count) = -1;
			sparse_count = sparse_count+1;
			i(sparse_count) = e;
			j(sparse_count) = im2var(y+1,x);
			va(sparse_count) = -1;
			sparse_count = sparse_count+1;
			i(sparse_count) = e;
			j(sparse_count) = im2var(y,x-1);
			va(sparse_count) = -1;
			sparse_count = sparse_count+1;
			i(sparse_count) = e;
			j(sparse_count) = im2var(y,x+1);
			va(sparse_count) = -1;
			b(e) = 4*s(y,x)-s(y-1,x)-s(y+1,x)-s(y,x-1)-s(y,x+1);
		else
			e = e+1;
			sparse_count = sparse_count+1;
			i(sparse_count) = e;
			j(sparse_count) = im2var(y,x);
			va(sparse_count) = 1;
			b(e) = T(y,x);
		end
	end
end

The resulting mask is:

The code for the toy problem is gra_proc.m.

---

2(I).7 Some Discussion

In this assignment, we tried several different ways to integrate a part of an image into another one.

Simple cloning is the easiest way to do that; however, the result would be sort of rough.

Alpha blending is a way to deal with the inserting boundaries, and the window size would determine the quality of the result. With a smaller window size, the rough boundaries are still rough; on the other hand, with a greater window size, the inserted image could be shadowed.

Gradient domain blending produced the most smooth result; however, the color of the inserted part were noticeably changed.

The code are provided in each section via a link to the corresponding part of the code.

---
