High Resolution, WFOV:

Kaiser Display Specifications


The system creates a very wide field of view display both horizontally and vertically by tiling six displays per eye to give the wide F.O.V. and maintain a high resolution image around. Electronics for the displays extend along the ear pieces on the side of the helmet and distribute the 800 x 600 resolution image into the individual displays. An optical system utilizing a meniscus mirror and passive filters by Kaiser keeps the unit compact.

Tracking of the headset is accomplished by UNC-CH designed "HiBall" ceiling tracker or a commercially available magnetic tracker. Either of which has a calibrated mount on the back of the headset.  HMD mounts and integration by the Microelectronics Systems Laboratory at UNC.  For some links to other Augmented HMDs, click here.

Kaiser Specifications


  Size: 0.7" active matrix

  Contrast: 200:1

  Pixels: 800H x 225V

Display System:

  FOV: 150deg H x 50deg V with 40deg overlap

  Resolution: Full color, 1.1 million pixels/eye

  Displays: 6 per eye, 12 total

  Technology: VIM optical technology

  Display Weight: 1.5 lbs

Head Mount System:

  Headgear:  Helmet with bladder type clamping

  IPD adjustment:  Single knob with graduations, 60mm - 78mm

  Eye Distance adjustment:  Single knob in back, 30mm travel

  Vertical adjustment:   Internal pads

  Tracking devices:  Hiball or magnetic sensor removable at back of helmet

  Audio:  Internal cupped earphones

Overall Weight: about 3.5 lbs

Funding for Research by DARPA

Display system Designed and built by Kaiser Electro-optical Corporation, Carlsbad, California

Mounting system Designed and built by the Microelectronic Systems Laboratory, UNC-Chapel Hill, NC

Video See-through, WFOV:

Several video see-through HMDs have also been developed at UNC’s computer science department including medical usage video-see through HMDs and other augmented HMDs.



UNC does not sell or reproduce the research HMDs.  However Kaiser Electro Optics of the WFOV HMD above and InnerOptic Technology, Inc. licensee of UNC’s augmented reality video see-through HMD, are manufacturers of commercial versions of some of the HMDs seen on these research pages.

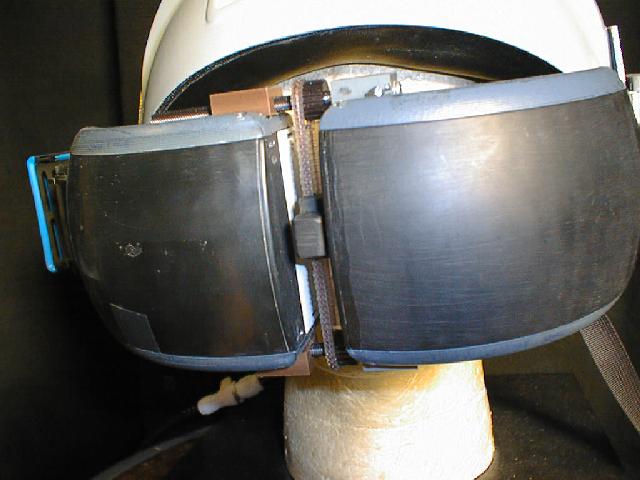

Kaiser Display
Front view of the 6 display per eye headset

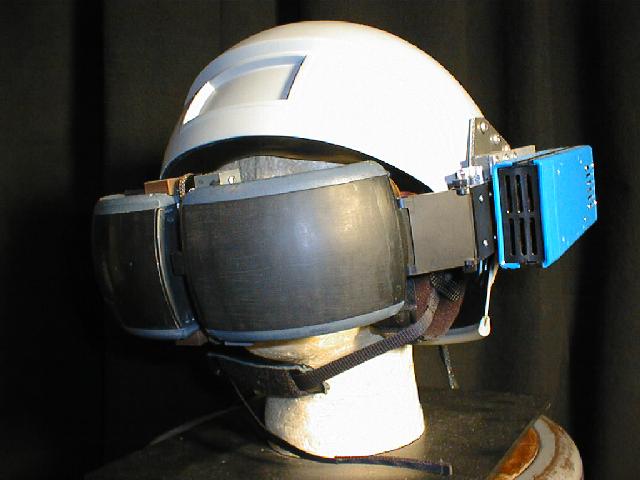

Kaiser Display
View showing flexible mounting to electronics

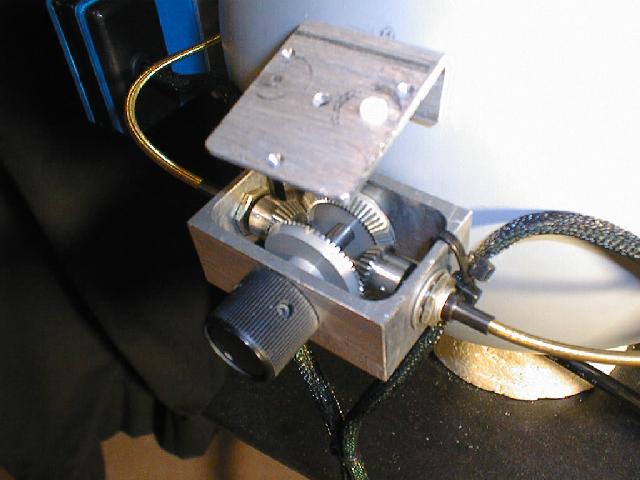

Kaiser Display
Detail of parallel optical mount adjustment

Kurtis Keller  4/20/2006
